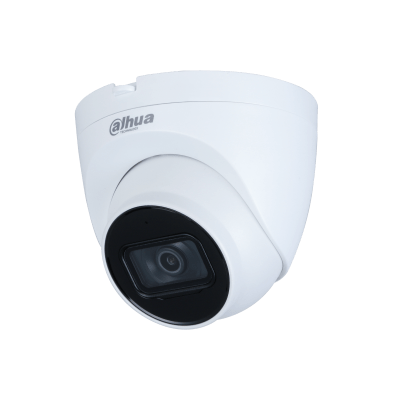

DH-IPC-HDW2431T-AS-S2 4MP WDR IR Eyeball Audio Camera

DescriptionDescriptionDH-IPC-HDW2431T-AS-S2 4MP WDR IR EYEBALL AUDIO CAMERAImage Sensor1/3” 4Megapixel progressive CMOSEffective Pixels2688 (H) × 1520 (V)ROM128 MBRAM128 MBScanning SystemProgressiveElectronic Shutter SpeedAuto/Manual 1/3 s–1/100000 sMin. Illumination0.008 Lux @ F1.6IR Distance30 m (98.43 ft)IR On/Off ControlAuto/ManualIR LEDs Number2Pan/Tilt/Rotation RangeHorizontal: 0°–360° Vertical: 0°–78° Rotation: 0°–360°LENSLens TypeFixedMount TypeM12Focal Length2.8 mm 3.6 mmMax. ApertureF1.6 F1.6Field of View2.8 mm: Horizonal: 102.0° Vertical: 55.0° Diagonal: 121.0° 3.6 mm: Horizontal: 84.0° Vertical: 45.0° Diagonal: 100.0°Iris TypeFixed apertureClose Focus Distance2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm56 m (183.73 ft)22.4 m(73.49 ft)11.2 m(36.75 ft)5.6 m(18.37 ft)3.6 mm80 m (262.47 ft)32.0 m (104.99 ft)16.0 m(52.49 ft)8.0 m(26.25 ft)Smart eventGeneral IVS AnalyticsIntrusion; tripwireDH-IPC-HDW2431T-AS-S2 4MP WDR IR EYEBALL AUDIO VIDEOVideo CompressionH.265; H.264; H.264B; MJPEGSmart CodecYesVideo Frame RateMain stream:2688 × 1520 (1 fps-20 fps)2560 × 1440 (1 fps-25/30 fps)Sub stream:704 × 576 (1 fps-25 fps)704 × 480 (1 fps-30 fps)Stream Capability2 streamsResolution2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)Bit Rate ControlCBR/VBRVideo Bit RateH.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 KbpsDay/NightAuto(ICR)/Color/B/WBLCYesHLCYesWDR120 dBWhite BalanceAuto/natural/street lamp/outdoor/manual/regional customGain ControlAuto/ManualNoise Reduction3D DNRMotion DetectionOFF/ON (4 areas, rectangular)Region of Interest(RoI)Yes (4 areas)Smart IRYesImage Rotation0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)MirrorYesPrivacy Masking4 areasAudioBuilt-in MICYesAudio CompressionG.711A; G.711Mu; G.726; AACNETWORKNetworkRJ-45 (10/100 Base-T)ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; BonjourInteroperabilityONVIF(Profile S/Profile G); CGI;P2P; Milestone;GenetecUser/Host20Edge StorageCloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NASBrowserIE Chrome FirefoxManagement SoftwareSmart PSS; DSS; DMSSMobile PhoneIOS; AndroidCERTIFICATIONCertificationsCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07POWERPower Supply12V DC/PoE (802.3af)Power Consumption< 6.6WENVIRONMENTOperating Conditions-40°C to 60°C (-40°F to 140°F)/less than ≤ 95%Storage Temperature-40°C to 60°C (-40°F to 140°F)ProtectionIP67STRUCTURECasingMetal PlasticDimensions100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)Net Weight0.39 kg (0.9 lb)Gross Weight0.56 kg (1.2 lb)Message | Contact US
