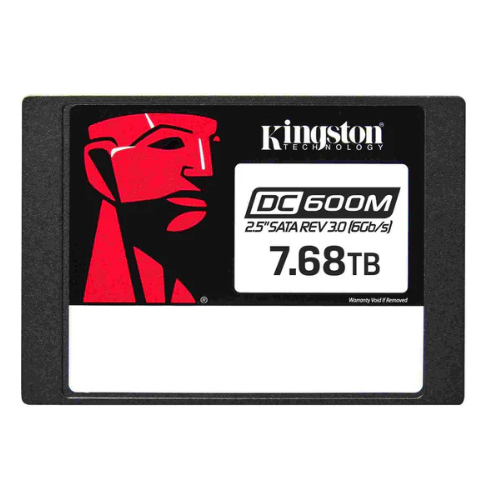

Kingston DC600M 2.5” SATA Enterprise SSD, 7.68 TB – SEDC600M/7680G

Kingston DC600M 7.68 TB Enterprise SATA SSD Overview The Kingston DC600M is a fourth-generation data-center SATA 3.0 SSD series engineered for mixed-use server workloads. The 7.68 TB (7 680 GB) model delivers consistent low latency and high IOPS, backed by 3D TLC NAND and hardware-based power-loss protection via onboard hold-up capacitors to safeguard data during unexpected outages. Key Features Form Factor: 2.5 in, SATA Rev. 3.0 (6 Gb/s) interface, backward compatible with SATA Rev. 2.0 NAND Type: 3D TLC with DRAM cache Power-Loss Protection: Onboard capacitors ensure data integrity and successful re-initialization on next power-up Workload Profile: Mixed-use data-center applications, optimized for RAID environments and hyperscale deployments Enterprise-Grade Monitoring: SMART tools for wear leveling, life-remaining, temperature, and usage statistics; static and dynamic wear leveling; hot-plug capable Capacities Capacity (GB) 480 960 1 920 3 840 7 680 Model Number DC600M/480G DC600M/960G DC600M/1920G DC600M/3840G DC600M/7680G Performance (7.68 TB Model) Metric Specification Sequential Read Up to 560 MB/s Sequential Write Up to 530 MB/s Steady-State 4 K Random Read Up to 94 000 IOPS Steady-State 4 K Random Write Up to 34 000 IOPS QoS Latency (99.999% Read/Write) ~240 µs / ~170 µs Typical Latency (Read/Write) < 200 µs / < 30 µs Physical & Environmental Attribute Specification Dimensions (L × W × H) 100.1 × 69.9 × 7 mm Weight ~ 71 g Hot-Plug Capable Yes Operating Temperature 0 °C to 70 °C Storage Temperature – 40 °C to 85 °C Humidity 5% to 95% RH (non-condensing) Power Consumption (Max) 3.6 W (write) Security & Compliance Encryption: AES 256-bit hardware encryption available on DC600ME variant (TCG Opal 2.0) Certifications: CE, FCC, RoHS, REACH
